VMAX™ Linear Vibrator
480 Series
|

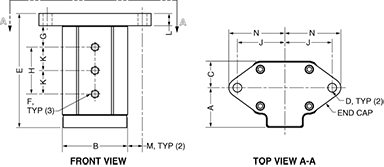

Dimensions & Specifications  |
| Model |
VMAX Vibrator Series 480 Dimensions (inches) |
Apprx. Wt. (lbs)
|
| A |
B |
C |
D |
E |
F
|
G |
H |
J |
K |
L |
M |
N |
| 250 |
2.06 |
3.25 |
1.25 |
0.55 |
7.00 |
3/8 NPT
|
1.31 |
2.88 |
2.50 |
1.44 |
0.75 |
0.88 |
3.03 |
7.9 |
| 600 |
2.43 |
4.00 |
1.63 |
0.55 |
7.00 |
3/8 NPT
|
1.31 |
2.88 |
2.50 |
1.44 |
0.75 |
0.50 |
3.03 |
12.2 |
| 1500 |
2.81 |
5.00 |
2.00 |
0.55 |
8.63 |
1/3 NPT
|
1.50 |
4.13 |
3.41 |
2.06 |
0.75 |
0.91 |
3.94 |
24.2 |
| 3000 |
3.31 |
6.25 |
2.50 |
0.88 |
11.00 |
3/4 NPT
|
1.75 |
5.50 |
4.38 |
2.75 |
1.00 |
1.25 |
5.25 |
50.0 |
| 6000 |
4.34 |
8.25 |
3.50 |
0.88 |
13.38 |
1 NPT
|
2.22 |
6.44 |
5.38 |
3.22 |
1.25 |
1.25 |
6.25 |
85.9 |
| 11000 |
4.96 |
9.44 |
4.13 |
1.06 |
18.50 |
1 NPT
|
2.84 |
9.81 |
6.00 |
4.91 |
1.50 |
1.28 |
7.06 |
187.3 |
|
| Vibrator Performance |
| Force Output (Lbs.) |
| Model |
Air Pressure (PSI) |
| 40 |
45 |
50 |
55 |
60 |
65
|
70 |
75 |
80 |
85 |
90 |
95 |
100 |
| 250 |
121 |
146 |
170 |
195 |
219 |
244
|
268 |
293 |
317 |
342 |
366 |
391 |
415 |
| 600 |
285 |
335 |
386 |
437 |
487 |
538
|
589 |
639 |
690 |
741 |
792 |
842 |
893 |
| 1500 |
375 |
497 |
620 |
743 |
866 |
988
|
1111 |
1234 |
1357 |
1479 |
1602 |
1725 |
1848 |
| 3000 |
628 |
819 |
1011 |
1203 |
1395 |
1586
|
1778 |
1970 |
2161 |
2353 |
2545 |
2736 |
2928 |
| 6000 |
980 |
1222 |
1465 |
1707 |
1946 |
2192
|
2434 |
2677 |
2919 |
3162 |
3404 |
3646 |
3889 |
| 11000 |
2516 |
2838 |
3085 |
3282 |
3455 |
3628
|
3927 |
4076 |
4400 |
4825 |
5376 |
6077 |
6954 |
| Frequency (Hz) |
| Model |
Air Pressure (PSI) |
| 40 |
45 |
50 |
55 |
60 |
65
|
70 |
75 |
80 |
85 |
90 |
95 |
100 |
| 250 |
30 |
31 |
32 |
33 |
34 |
35
|
36 |
38 |
39 |
40 |
41 |
42 |
43 |
| 600 |
28 |
28 |
29 |
30 |
31 |
32
|
32 |
33 |
34 |
35 |
36 |
36 |
37 |
| 1500 |
21 |
22 |
23 |
24 |
25 |
26
|
27 |
28 |
29 |
30 |
31 |
32 |
32 |
| 3000 |
17 |
18 |
19 |
19 |
20 |
20
|
21 |
21 |
22 |
23 |
23 |
24 |
24 |
| 6000 |
13 |
14 |
14 |
15 |
15 |
16
|
16 |
17 |
17 |
18 |
18 |
18 |
19 |
| 11000 |
12 |
12 |
12 |
13 |
13 |
14
|
15 |
16 |
17 |
18 |
19 |
20 |
20 |
| Air Consumption (SCFM) |
| Model |
Air Pressure (PSI) |
| 40 |
45 |
50 |
55 |
60 |
65
|
70 |
75 |
80 |
85 |
90 |
95 |
100 |
| 250 |
9 |
10 |
12 |
14 |
16 |
17
|
19 |
21 |
22 |
24 |
26 |
27 |
29 |
| 600 |
11 |
13 |
15 |
17 |
19 |
21
|
23 |
25 |
27 |
30 |
32 |
34 |
36 |
| 1500 |
13 |
17 |
20 |
23 |
26 |
29
|
33 |
36 |
39 |
42 |
46 |
49 |
52 |
| 3000 |
28 |
33 |
37 |
42 |
47 |
52
|
56 |
61 |
66 |
70 |
75 |
80 |
84 |
| 6000 |
66 |
73 |
81 |
88 |
95 |
102
|
109 |
116 |
124 |
131 |
138 |
145 |
152 |
| 11000 |
68 |
77 |
86 |
95 |
104 |
113
|
123 |
132 |
141 |
150 |
159 |
168 |
177 |
|
