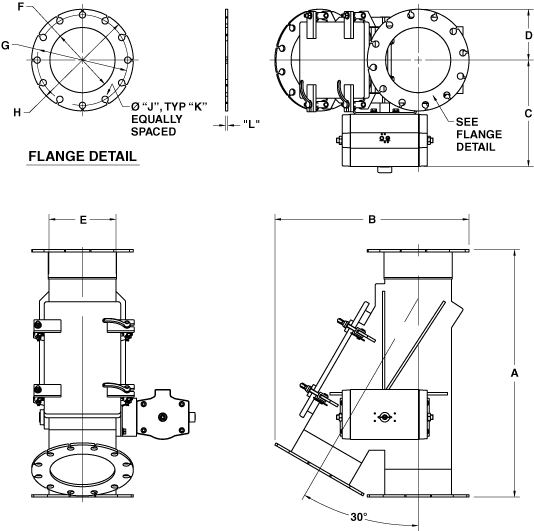

Size	Gravity Diverter Valve Dimensions (inches)
	A	B	C	D	E	F	G	H	J	K	L
2	18.29	11.79	9.42	3.00	2.34	2.07	4.75	6.00	.75	4	.38
3	24.15	17.39	10.40	3.75	4.30	3.07	6.00	7.50	.75	4	.38
4	24.15	17.39	10.40	4.50	4.30	4.03	7.50	9.00	.75	8	.38
5	27.94	21.12	12.67	5.00	6.33	5.05	8.50	10.00	.88	8	.38
6	27.94	21.12	12.67	5.50	6.33	6.07	9.50	11.00	.88	8	.38
8	38.94	30.55	16.76	6.75	10.52	8.13	11.75	13.50	.88	8	.38
10	38.94	30.55	16.76	8.00	10.52	10.25	14.25	16.00	1.00	12	.38
12	49.84	39.83	18.39	9.50	13.77	12.25	17.00	19.00	1.00	12	.38
14	49.84	39.83	18.39	10.50	13.77	13.50	18.75	21.00	1.13	12	.50
16	54.77	44.50	20.56	11.75	15.77	15.50	21.25	23.50	1.13	16	.50


All dimensions subject to change without notice.
