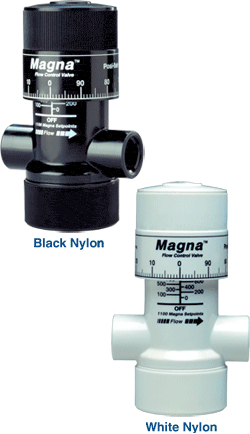

Magna^™ Flow Control Valve

Series 608, 700 & 808

For Gases or Liquids

1100 Precise Setpoints

The Magna Flow Control Valve with an easy to read micrometer dial offers an amazing 1100 precise set points to accurately control flow of gases or liquids. The high CV of the Magna Flow Control Valve enables very high flows with the Series 608 and lower flows with the Series 700 or 808 for whatever media is being controlled, up to 200 PSIG pressure or full vacuum. Linear flow characteristics provide easy to set and precise metering of gases and liquids for almost any application where accurate results are required.

Hundreds of Applications

Available in light-weight impact resistant nylon, the Magna Flow Control Valve offers superior strength and corrosion resistance, making it ideal for use in hundreds of different applications. Simplicity of construction, with removable top and bottom caps, provides easy disassembly for cleaning or maintenance without removing the valve from service. Proven O-ring seals provide a positive zero leak shut-off. Replacement of seals, if required, is quick and easy because disassembly is simple and fast. The Magna Flow Control Valve offers all these features at a very affordable price.
