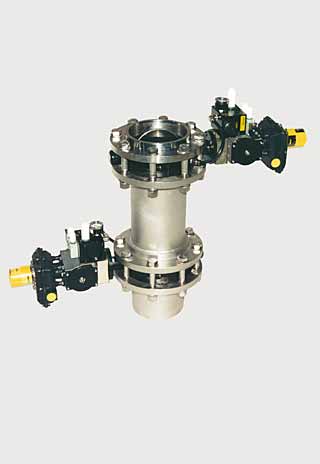

Purpose: Double Dump Valve Assembly for a Dust Collector Discharge Handling Phenolic Resin
Valve Size: 8"
Series Number: 436
Housing: Cast Iron
Disc: 316 Satin Stainless Steel
Seat: Black EPDM
Limit Switch:Trak-Lok™ NEMA 4/12
Actuator:Tork-Mate™ 690 Series, Double Acting
Controls: Automated Seat Inflation, NEMA 4/12
Product Application 20042-2
